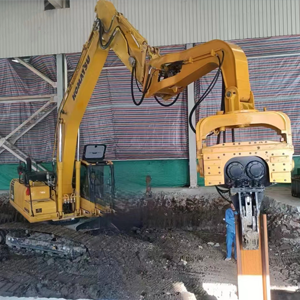

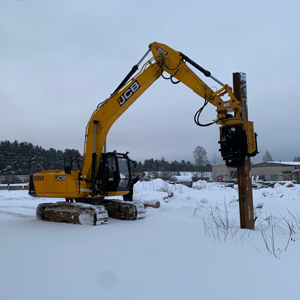

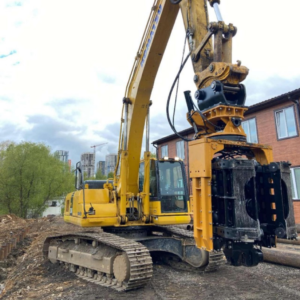

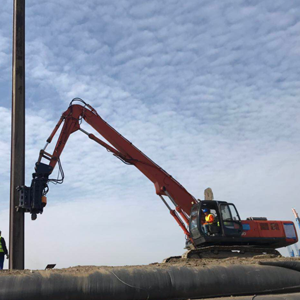

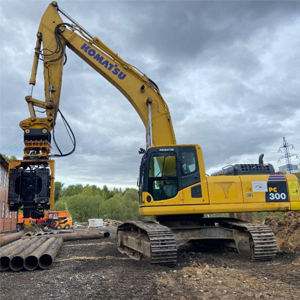

Excavator Side Grip Vibro Hammer 55B Model

The excavator side grip vibro hammer is powered by the excavator’s hydraulic system. Hydraulic oil drives the hydraulic motor, which rotates a pair of eccentric weights at high speed. The counter-rotating eccentric weights generate a strong vertical vibration force while canceling horizontal forces. This vibration is transmitted through the clamp directly to the pile, reducing soil resistance and allowing the pile to be driven into or extracted from the ground efficiently.

Inquiry

描述

Parameter table

Eccentric Moment:	5.5 KGM
Centrifugal force:	495Kn
Max. Centrifugal force:	550Kn
Frequency:	2400-3000Rpm
Side clamp force:	764Kn
Bottom clamp force:	540Kn
Hydraulic system operation pressure:	350bar
Rotate/tilt degree:	360/+-30degree
Size:	125011842559mm
Weight:	3500Kg
Applicable excavator class:	25-32Ton

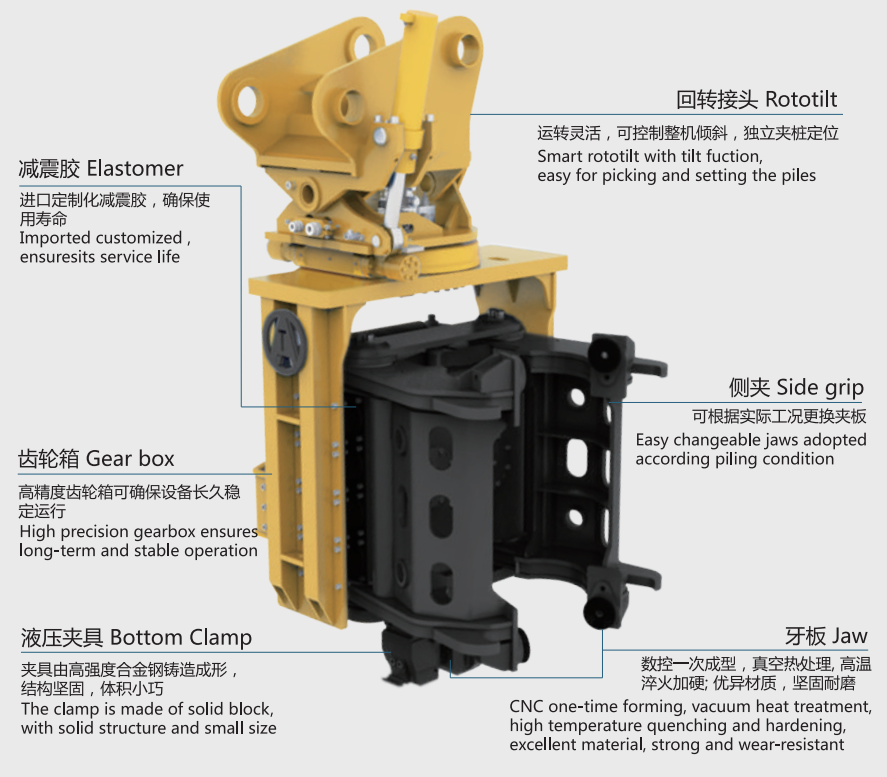

Product Features

JNL Side grip vibro hammer enables small excavator like 15 tons to do more piling job, such as 12m sheet pile driving and extracting. It has perfect efficiency and strong availability in height limited job site condition.
It is safer, easier, and more economical to use side grip vibro hammer, since modification of excavator is no longer needed, additionally transportation of excavator with prolonged boom would be inconvenient and expensive.
JNL side grip vibro hammer has two series, B series with 2 eccentric blocks and C series with 4 eccentric blocks, totally 7 models for excavators weighting from 15 tons to 50 tons, meet the different requirements of various types of customers.
