描述
| Eccentric Moment: | 750 KGM |
| Centrifugal Force: | 0-823 KN |
| Max. Line Pull: | 392 KN |
| Max. Amplitude: | 0-12 mm |
| Dimensions (w/o clamp L*W*H): | 2100x1400x2600 mm |
| Weight (w/o clamp): | 7000 kgs |
| Fitable Clamp Type: | Single / Double Clamp |
| Motor Power: | 120 KW |
| Frequency: | 0-1000 rpm |
| Electric Cable: | 70 mm² |
| Scope for double clamp: | 600-2000 mm |
| Generator Capacity: | 300 KW |
| Crane Capacity Required: | 70 Ton |
Anti-vibration design electric motor
JNL Vibratory hammer using the anti-vibration design electric motor, the bearing could working upto 95 degree temperature, nd could overload in short period of time and high torque, wedge shped belt is high strengt.
FAB X-life bearing
The bearing of the vibratory hammer required receive impact load, radial accelerate, high limiting speed in a limited space, and also need to carry non-concentricify, deflection curve etc. additional oad. the traditional cylindrical roller bearing is not able to meet such requirement. In that case, we are using X-life high quality bearing from FAG. X-Life series could carry 18% more load and increase 70% of the bearing life.
Product Size

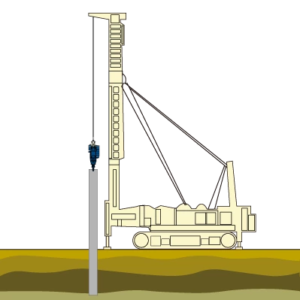

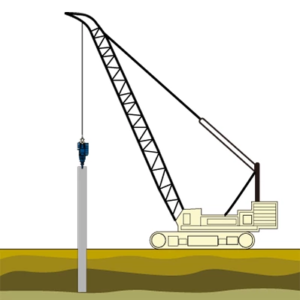

 Crawler Crane |
 Crawler Rig Lead support |

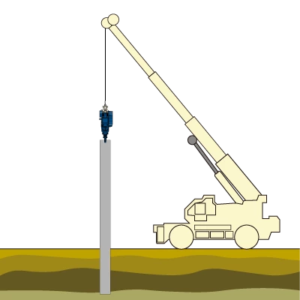

 Rough Terrain Crane |

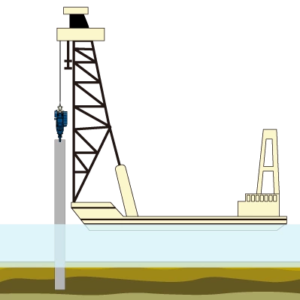

 Floating Crane |

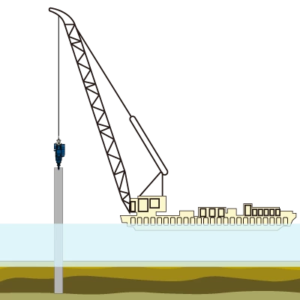

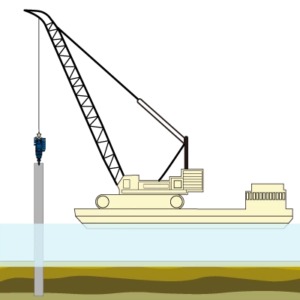

 Crane Fitted Barge |

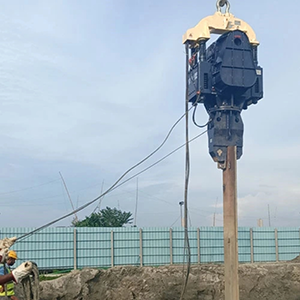

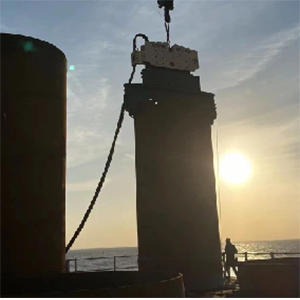

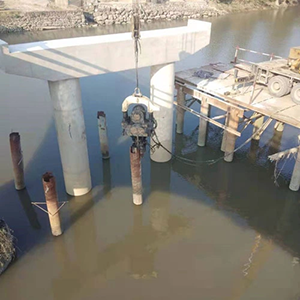

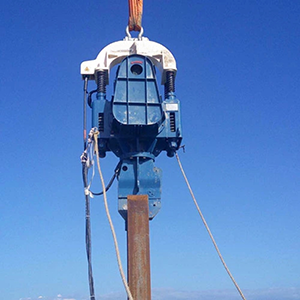

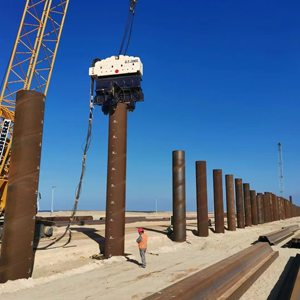

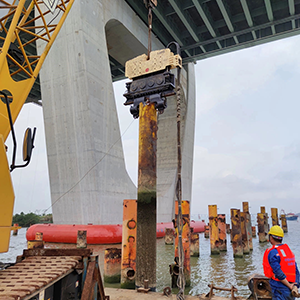

 Piling Project of DZ-120 Electric Vibro Hammer |
|
|
|
|
|
|
